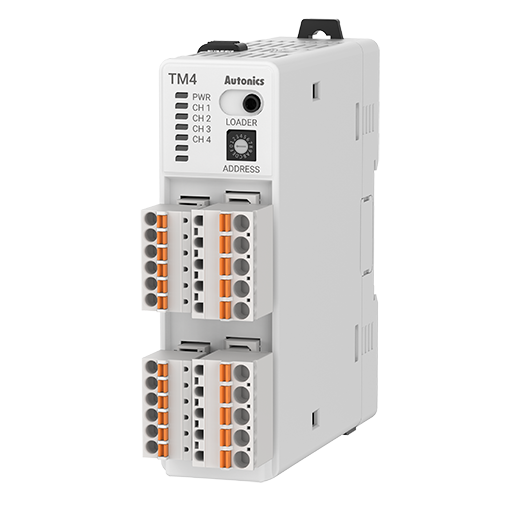

* Image may differ
TM4-N2RE
- Number of input channels : 4-channel
- Sampling cycle : 100ms(4-CH synchronous sampling)
- Control output : 250 VAC~ 3A 1a, 30 VDC@(=) 3A 1a
Data sheet Print
| Number of input channels | 4-channel |
|---|---|
| Power supply | 24VDC @(=) ±10% |
| Power consumption | ≤ 5 W (for Max. load) |
| Sampling cycle | 100ms(4-CH synchronous sampling) |
| RS485 Comm. | Modbus ASCII / RTU |
| Control output | 250 VAC~ 3A 1a, 30 VDC@(=) 3A 1a |
| Hysteresis | 1 to 100 (0.1 to 100) ℃/℉ |
| Display method | Non-display |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9℃/℉ |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | 0.1 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV) |
| Weight_Expansion module | Approx. 231g(approx. 166g) |
※The expansion module does not supply power/comm. terminal. Order it with the basic module.※In case of thermocouple K, J, E, T, N, it is below -100℃ and L, U, Platinel II, it is below ±2℃ ±1-digit.In case of thermocouple B, display accuracy cannot be ensured under 400℃.In case of thermocouple R, S, it is below 200℃ and C, G, it is max. 3℃ ±1-digit.※Influence of temperature: Applied when it is for out of room temperature (23±5℃) range.※The weight includes packaging. The weight in parenthesis is for unit only.※Environment resistance is rated at no freezing or condensation.
