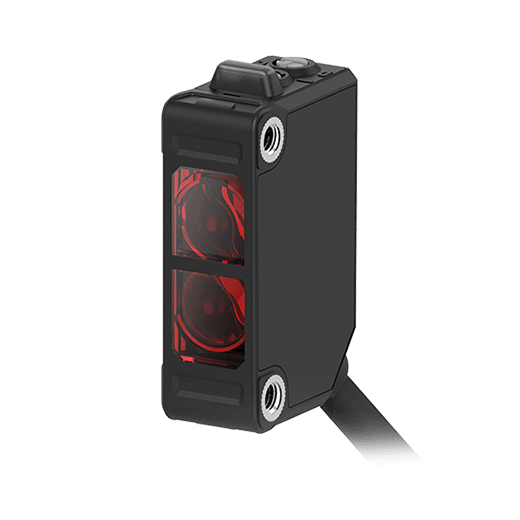

BJX100-DDT-P

  • Sensing type : Diffuse reflective type
  • Sensing distance : 100mm
  • Sensing target : Opaque, Translucent material
  • Light source : Infrared LED(850nm)
  • Response time : Max. 1ms

Data sheet Print

Data sheet
Sensing type Diffuse reflective type
Sensing distance 100mm
Sensing target Opaque, Translucent material
Light source Infrared LED(850nm)
Response time Max. 1ms
Power supply 10-30VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption Max. 30mA
Sensitivity adjustment Sensitivity adjuster
Operation mode Light ON/Dark ON(set by switch)
Control output PNP open collector
Connection type Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m)
(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm)
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -25 to 60℃, storage: -40 to 70℃
Protection structure IP65(IEC standard)
Approval @(CE) @(CULUS)
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance) Max. 20% of sensing distance
Material ㆍCase: polycarbonate
ㆍLED CAP: polycarbonate
ㆍLens, Lens cover: polymethyl methacrylate
Accessories_Common Mounting bracket, M3 bolt: 2, adjustment screwdriver
Weight Approx. 100g(approx. 50g)

※Non-glossy white paper 100×100mm.
※UL approved surrounding air temperature 40℃
※M8 connector cable is sold separately.(AWG22, core diameter: 0.08mm, number of cores: 60, insulator out diameter: Ø1.25mm)
※Accessory: Cable type includes bracket A and connector type includes bracket B.
※The weight includes packaging. The weight in parenthesis is for unit only.
※The temperature or humidity mentioned in Environment indicates a non freezing or condensation.
