M4W2P-DV-1 - Digital Voltmeters

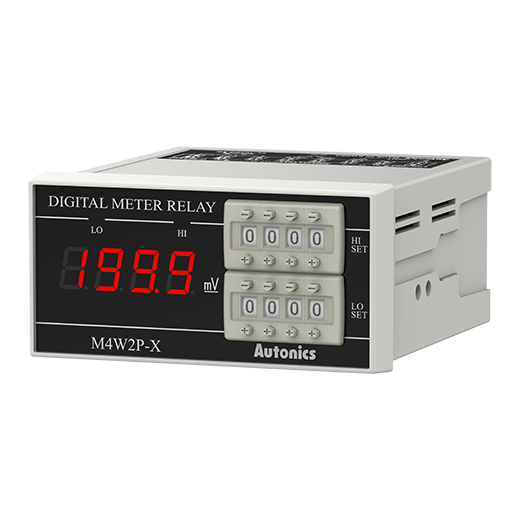

* Image may differM4W2P-DV-1
- Display method : 3½-digit 7-segment LED
- Character height : 10mm
- Measurement : DC voltage
- Input specification : 199.9mV
- Max. display Range : 0 to 199.9
- Output : Relay(HI, LOW)
Data sheet Print
| Display method | 3½-digit 7-segment LED |
|---|---|
| Character height | 10mm |
| Measurement | DC voltage |
| Input specification | 199.9mV |
| Max. display Range | 0 to 199.9 |
| Power supply(Option) | 110/220VAC~ 50/60Hz(24-70VDC  , 100-240VAC~ 50/60Hz) |
| Output | Relay(HI, LOW) |
| Max. allowable input | 150% for each input specification (at 400VAC:120%) |
| Display accuracy_DC power | F.S. ±0.2% rdg ±1-digit |
| Sampling cycle | 300ms |
| Environment_Ambient temperature | -10 to 50℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 278g |
※Power supply: It is optional.(customizable)
※Environment resistance is rated at no freezing or condensation.
※The weight includes packaging. The weight in parenthesis is for unit only.
