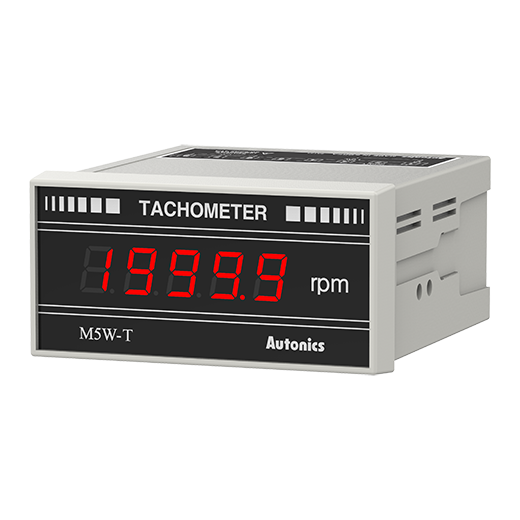

M5W-T-DX - Digital Tachometers (Speed Meters)

M5W-T-DX
- Display method : 4½-digit 7-segment LED
- Character height : 14mm
- Measurement : Rotation
- Input specification : DC INPUT option
- Max. display Range : 0 to 19999
- Output : Indicator
Data sheet Print
Display method | 4½-digit 7-segment LED |
---|---|
Character height | 14mm |
Measurement | Rotation |
Input specification | DC INPUT option |
Max. display Range | 0 to 19999 |
Power supply(Option) | 100-240VAC~ |
Output | Indicator |
Max. allowable input | 150% for each input specification (at 400VAC:120%) |
Display accuracy_DC power | F.S ±0.2% rdg ±1-digit |
Sampling cycle | 300ms |
Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
Weight | Approx. 172g |
※Measuring input and display are 1:1.
※M4Y, M5W are indicator.
※M5W AC measurement type has RMS only. It dose not have "R" in model name.
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
