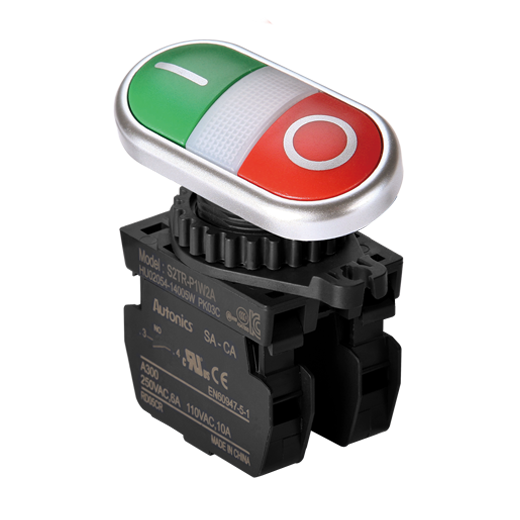

S2TR-P1W2AM - 22/25 mm Double Push Button Switches
* Image may differS2TR-P1W2AM
- Protection structure : IP50
- Button type : [Non-illuminated] Extended
- Contact block : A contact: 2
- Contact block type : Modular type
Data sheet Print
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
|---|---|
| Protection structure | IP50 |
| Weight_Mounting hole_Ø22/25 | Approx. 14.5g |
| Weight_Housing | Approx. 7g |
| Weight_Contact block_Modular type A/B contact | Approx. 10g |
| Button type | [Non-illuminated] Extended |
| Contact block | A contact: 2 |
| Contact block type | Modular type |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
