ABL-HC16PA-PN - Relay Terminal Blocks (Screwless Push-In Type)

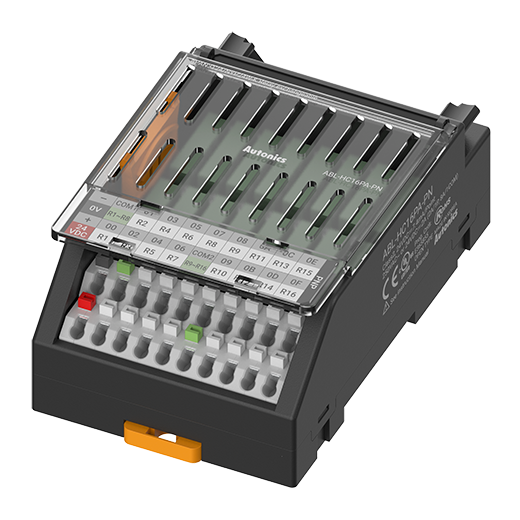

* Image may differABL-HC16PA-PN
- Applied relay : APAN3124 [MATSUSHITA(Panasonic)]
- Current consumption : ≤ 7.4 mA or ≤ 10.1 mA
- Number of relay points : 16
- Terminal type : Screwless
- Terminal pitch : ≥ 5 mm
Data sheet Print
| Applied relay | APAN3124 [MATSUSHITA(Panasonic)] |
|---|---|
| Rated voltage | ≤ 24 VDC ±10 % |
| Current consumption | ≤ 7.4 mA or ≤ 10.1 mA |
| Number of connector pins | 20 |
| Number of relay points | 16 |
| Terminal type | Screwless |
| Terminal pitch | ≥ 5 mm |
| Indicator | Power indicator: red, operating indicator: blue |
| Applicable cable_Solid wire | Ø 0.6 to 1.25 mm |
| Applicable cable_Stranded wire | AWG 22-18 (0.30 to 0.80 mm²) |
| Insulation resistance | ≥1,000MΩ (at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 3,000VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 1,000VAC 50/60Hz for 1 minute |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | CASE, BASE, COVER: PC terminal pin: copper+PA66 |
| Protection structure | IP20(IEC standard) |
| Weight | ≈ 173 g (≈ 220 g) |
