ABL-HC32TN-NN - Relay Terminal Blocks (Screwless Push-In Type)

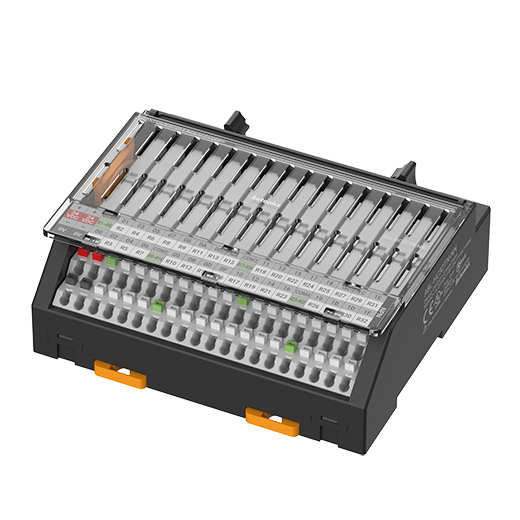

* Image may differABL-HC32TN-NN
- Applied relay : NYP24W-K[TAKAMISAWA(Fujitsu)]
- Current consumption : ≤ 7.8 mA or ≤ 10.5 mA
- Number of relay points : 32
- Terminal type : Screwless
- Terminal pitch : ≥ 5 mm
Data sheet Print
| Applied relay | NYP24W-K[TAKAMISAWA(Fujitsu)] |
|---|---|
| Rated voltage | ≤ 24 VDC ±10 % |
| Current consumption | ≤ 7.8 mA or ≤ 10.5 mA |
| Number of connector pins | 40 |
| Number of relay points | 32 |
| Terminal type | Screwless |
| Terminal pitch | ≥ 5 mm |
| Indicator | Power indicator: red, operating indicator: blue |
| Applicable cable_Solid wire | Ø 0.6 to 1.25 mm |
| Applicable cable_Stranded wire | AWG 22-18 (0.30 to 0.80 mm²) |
| Insulation resistance | ≥1,000MΩ (at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 3,000VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 750VAC 50/60Hz for 1 minute |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | CASE, BASE, COVER: PC terminal pin: copper+PA66 |
| Protection structure | IP20(IEC standard) |
| Weight | ≈ 370 g (≈ 463 g) |
