AFS-HB40 - Interface Terminal Blocks

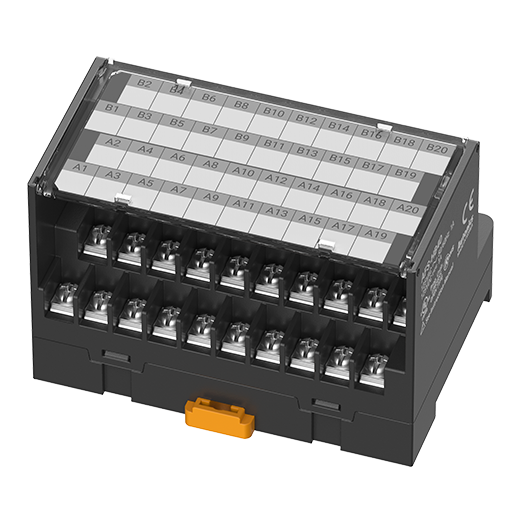

* Image may differAFS-HB40
- Number of connector pins : 40-pin
- Number of terminal : 40 EA
- Terminal pitch : 7.2mm
- Material : Case, Base: PC, terminal: brass
- Weight : Approx. 194g(approx. 142g)
- Rated voltage : ≤125VDC
, 125VAC~ 50/60Hz - Rated current : ≤1A
- Environment_Ambient temperature : -15 to 55℃, storage: -25 to 65℃
Data sheet Print
| Number of connector pins | 40-pin |
|---|---|
| Number of terminal | 40 EA |
| Terminal pitch | 7.2mm |
| Material | Case, Base: PC, terminal: brass |
| Weight | Approx. 194g(approx. 142g) |
| Rated voltage | ≤125VDC , 125VAC~ 50/60Hz |
| Rated current | ≤1A |
| Insulation resistance | ≥1,000MΩ (at 500VDC megger) |
| Dielectric strength | 2,700 VAC~ 50/60 Hz for 1 minute |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
