AiS-D-28MB - 2-Phase Closed Loop Stepper Motor Drivers

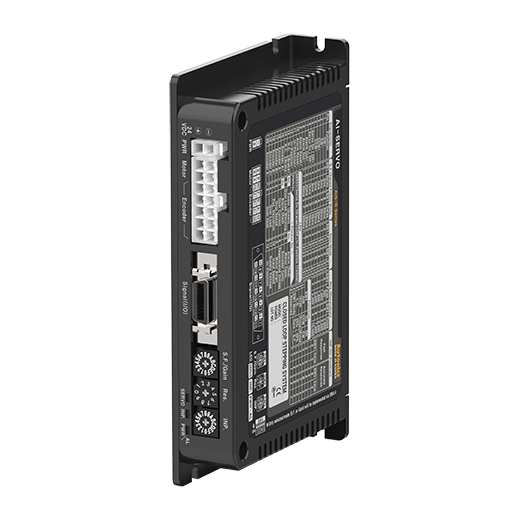

* Image may differAiS-D-28MB
- Driver_Operation Method : Bipolar constant current Drive
- Driver_Applied Motor : Frame size 28mm, shaft type, 2-phase closed-loop stepper motor(Ai-M-28MB)
- Driver_Resolution : 500, 1000, 1600, 2000, 3600, 5000, 6400, 7200, 10000, 16000 PPR(SW2)
- Driver_Power supply : 24VDC
- Driver_Max. Run Current : 1.0A/Phase
Data sheet Print
| Driver_Operation Method | Bipolar constant current Drive |
|---|---|
| Driver_Applied Motor | Frame size 28mm, shaft type, 2-phase closed-loop stepper motor(Ai-M-28MB) |
| Driver_Resolution | 500, 1000, 1600, 2000, 3600, 5000, 6400, 7200, 10000, 16000 PPR(SW2) |
| Driver_Power supply | 24VDC |
| Driver_Max. Run Current | 1.0A/Phase |
| Driver_Max. Power consumption | 60W |
| Driver_Output | In-Position, Alarm Out, Encoder signal (A,  , B,  , Z,  ) |
| Driver_Protection structure | IP20 |
| Driver_Environment_Ambient temperature | 0 to 50℃, storage: -20 to 70℃ |
| Driver_Environment_Ambient humidity | 35 to 85%RH, storage: 10 to 90%RH |
| Driver_Weight | Approx. 400g(approx. 290g) |
