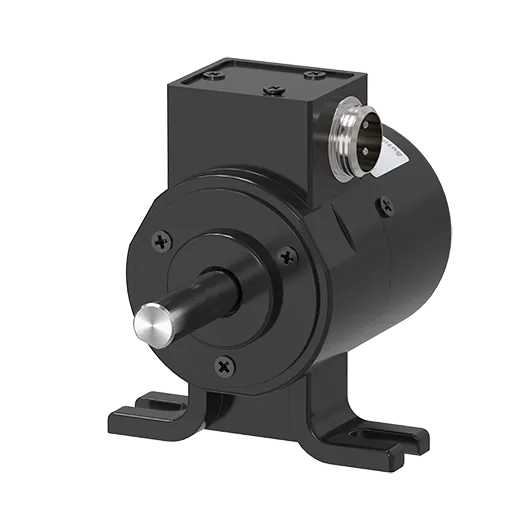

ENA-50-2-N-24 - Side Mount Incremental Rotary Encoders (Shaft Type)

* Image may differ

CAD

ENA-50-2-N-24

Shaft outer diameter : Ø10mm
Max. response frequency : 300kHz
Max. allowable revolution : 5000rpm
Starting torque : Max. 70gf.cm(max. 0.00686N.m)
Resolution : 50P/R
Control output : NPN open collector
Power voltage : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50

Price inquiry Add to interested product(s)

Compare View model specifications

Data sheet Print

Data sheet
Shaft outer diameter	Ø10mm
Max. response frequency	300kHz
Max. allowable revolution	5000rpm
Starting torque	Max. 70gf.cm(max. 0.00686N.m)
Resolution	50P/R
Output phase	A, B
Control output	NPN open collector
Power voltage	12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type	Radial connector type
Protection structure	IP50
Environment_Ambient temperature	-10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 90% RH
Accessories	Ø10mm coupling, Connector cable
Weight	Approx. 345g

※Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
※Sold separately: Connector cable
