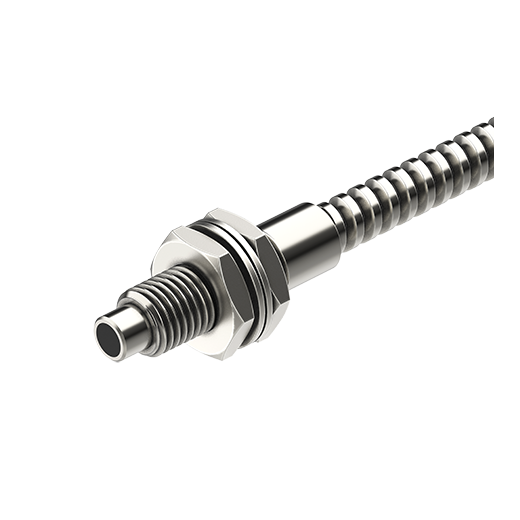

GD-610-12V2 - Fiber Optic Units
* Image may differGD-610-12V2
- Type : Standard type(bolt type)
- Sensing distance : 180mm(FU-VA01)/120mm(FU-VA02)
- Min. sensing target : Ø0.08mm
- Allowable bend radius : R25
- Cable length : 1m
- Environment_Ambient temperature : -60 to 250℃
Data sheet Print
| Type | Standard type(bolt type) |
|---|---|
| Sensing distance | 180mm(FU-VA01)/120mm(FU-VA02) |
| Min. sensing target | Ø0.08mm |
| Allowable bend radius | R25 |
| Cable length | 1m |
| Environment_Ambient temperature | -60 to 250℃ |
| Sensing type | Diffuse reflective type |
Downloads
- No search results
Used together with
BF5 Series
The BF5 series fiber optic amplifiers are available in single and dual display models. The units feature 5 different response speed settings, for flexible and reliable detection of fast moving targets or small objects. With integrated mutual interference prevention, reliable detection is possible with multiple units (up to 8 units) with connection using side connectors. Other features include saturation prevention function, inverted display, and simple sensitivity adjustment settings. Red, green, and blue LED light source models are available for diverse applications.
BFX Series
The BFX series fiber optic amplifiers feature dual digital LCD display for displaying present value and set value. The amplifier units feature quick response rates up to 50 ㎲, allowing detection of fast moving targets and high accuracy. The units feature 5 different response speed settings and 4 different sensitivity settings, for flexible application in diverse environment settings.
