SFDL-SCB-CG1/2 - Safety Door Lock Switches

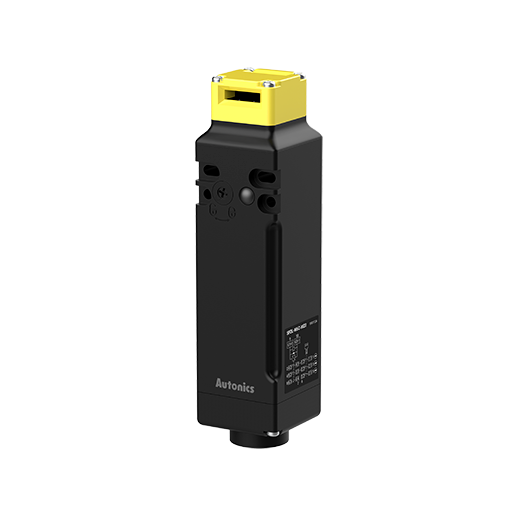

* Image may differSFDL-SCB-CG1/2
- Directing opening force : Min. 80N
- Directing opening distance : Min. 10mm
- Locking pullout strength : Min. 1,300N
- Sold separately : Operation key, connector cable
- Weight : Approx. 395g(approx.325g)
Data sheet Print
| Directing opening force | Min. 80N |
|---|---|
| Directing opening distance | Min. 10mm |
| Locking pullout strength | Min. 1,300N |
| Operating speed | 0.05 to 1m/s |
| Operating frequency | Max. 20/min |
| Life cycle_Mechanical | Min. 1,000,000 operations (20/min) |
| Vibration_Malfunction | 0.35mm single amplitude at frequency of 10 to 55Hzin each X,Y,Z direction for 10 min |
| Shock | 1,000m/s² (approx. 100G) in each X, Y, Z direction for 3 times |
| Shock_Malfunction | 1,000m/s² (approx. 100G) in each X, Y, Z direction for 3 times |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67(IEC standerd, except head) |
| Material | Head: zinc, case: polyamide 66, operation key: stainless steel 304 |
| Sold separately | Operation key, connector cable |
| Weight | Approx. 395g(approx.325g) |
| Rated load voltage & current | Resistive load : 1A/120VAC~, 0.22A/125VDC Inductive load : AC-15 1A/120VAC~, DC-13 0.22A/125VDC |
| Dielectric strength_Between the terminals of same polarity | 1.5kV |
| Dielectric strength_Between the terminals of different polarity | 1.5kV |
| Dielectric strength_Between each terminal and non-live part | 2.5kV |
| Insulation resistance | 100MΩ or more (500VDC megger basis) |
| Contact resistance | Max. 200mΩ |
| Life cycle_Electrical | Min. 100,000 operations (125VAC~/1A) |
| Conditional short circuit current | 100A |
| Rated voltage | 24VDC |
| Current consumption | Supplying power: 0.26A Normal: max. 0.2A (approx. 3 seconds after supplying power) |
| Insulation class | Class E |
