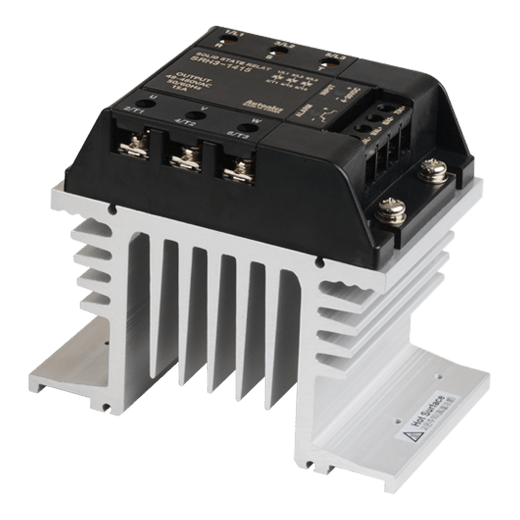

SRH3-1415 - Three-Phase Solid State Relays (Integrated Heatsink Type)
* Image may differSRH3-1415
- Control phase : 3-phase
- Heatsink : Heatsink
- Mounting type : Panel, DIN rail
- Rated input voltage : 4-30VDC
- Rated load voltage : 48-480VAC~
- Dielectric strength : 2,500VAC~
Data sheet Print
| Control phase | 3-phase |
|---|---|
| Heatsink | Heatsink |
| Mounting type | Panel, DIN rail |
| Rated input voltage | 4-30VDC |
| Rated load voltage | 48-480VAC~ |
| Dielectric strength | 2,500VAC~ |
| Rated load current | 15A |
| Function | Zero cross turn-on |
| Environment_Ambient temperature | -30 to 80℃(in case of the rated input voltage 90-240VAC~: -30 to 70℃), Storage: -30 to 100℃( The rated load current capacity is different depending on ambient temperature. Refer to '▣ SSR Derating Curve'.) |
| Environment_Ambient humidity | 45 to 85% RH, storage: 45 to 85% RH |
| Weight | approx. 896g(approx. 686g) |
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
※For wiring the terminal, an O-ring terminal must be used.
※Rated load current capacity is varied by ambient temperature. Refer to “SSR Derating Curve of Autonics” total catalogue.
