BWML Series - Line Beam Mapping Sensors
BWML Series Line Beam Mapping Sensors
The BWML series line beam mapping sensors minimize non-detection areas with line beam detection. The sensors allow easy installation as the optical axis does not need to be located exactly where the glass substrate is located. The sensors support CC-Link and EtherCAT communication protocols. The sensors provide the increased convenience with diffuse reflective type.
Main features
- Stable glass substrate detection using line beam detection with minimal non-detection area
- Sensing distance: 95 ±10 mm
- Customized models available: sensing channels (8 to 62 channels), sensing target pitch (min. 20 mm), sensing area (280 to 1595 mm)
- Communication output: CC-Link (ver 1.1, 2.0), EtherCAT
- Easy installation with installation instruction mode and background sensing mode
- Channel interference alarm, 5-stage sensing level setting, emitter/receiver error alarm
- Bright status indicators
Line Beam
CC-Link, EtherCAT Communication
Various Sensing Channels
Bright Status Indicator
Protection Rating
-
Customized Models Available
The sensors allow different sensing channels, optical axis pitches and sensing area depending on diverse user environments. The diffuse reflective type provides convenience of installation with a light transmitter/receiver in a single product.
-
Minimize Non-detection Area with Line Beam Sensing Method
The diffuse reflective line beam method minimizes non-detection area. This method also allows easy installation as the optical axis does not need to be located exactly where the glass substrate is located.
;){kind=link}
;){kind=link}
-
Diverse Modes Allowing Easy Installation
Users can install the sensors easily with installation instruction mode and background sensing mode.
-

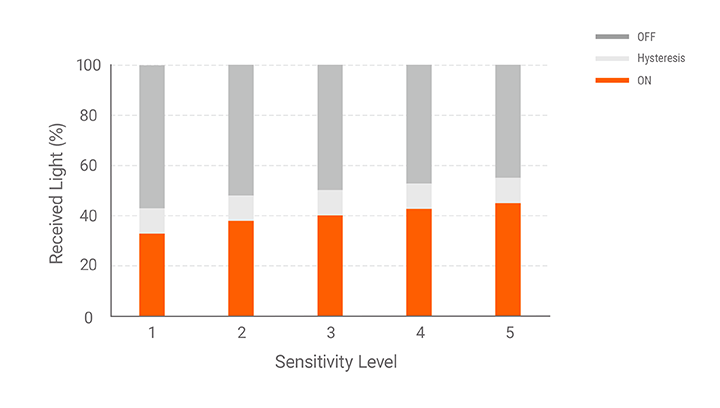

Minimize Influence from Diffuse Reflection with 5 Different Sensitivity Levels
Users can set different sensing levels by channels to minimize influence of bent glass or defused reflection. The sensing level can be set in 5 different sensitivity levels.
;){kind=link}
;){kind=link}
-
CC-Link, EtherCAT Communication Protocol Support
The units offer support for CC-Link or EtherCAT communication support and also offer options for connector type connection and terminal type connection.
-
Various Alarms
The sensors allow stable operation with various alarms when channel interference, external light interference and receiver/emitter damage.
;){kind=link}
;){kind=link}
-
Enhanced User Convenience
Users can install and operate the sensors easily by reversing the status display, setting channel order, setting operation mode, and changing error output.
Enhanced User Convenience Function Details Reverse Status Display Reverse Status Display Set Channel Order Output 1-N Glass in 1-N channel or 1-N channel order. Set Operation Mode Set Light ON or Dark ON operation mode Change Error Ouput Set error output (contact A or B)
