SFLA Series - Safety Light Curtains (High Performance Type)

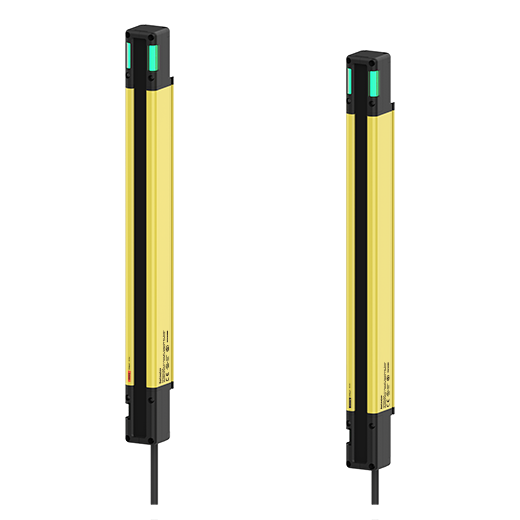

SFLA Series Safety Light Curtains (High Performance Type)





The SFLA series safety light curtains are installed in potentially dangerous or hazardous areas to safeguard personnel from injury. The light curtains feature proven technology from Autonics area sensors and mapping sensors. The light curtains are built to meet international safety standards and regulations. Various detection models (finger/hand/hand-body detection) and safety-related functions are available for diverse applications. The dedicated software atLightCurtain allows real-time status monitoring user settings such as automatic muting/blanking area functions.
Main features
- International safety standard and regulation compliance
: Type 4 ESPE (AOPD), SIL3, SIL CL3, Category 4, PL e, CE, UL Listed, S-Mark, KCs (industrial robot protection device) - Available in 3 detection type models (finger, hand, hand-body detection) and various protection height models
- Various safety-related functions & self-diagnosis functions
- Various status readings with 7-segment display and status indicators
- Easy beam adjustment with top and bottom beam indicators
- Upper OSSD indicator to check operation status and muting status (separate muting lamp not required)
- 4 non-safety outputs for various applications (2 AUX, 2 lamp)
- Stable operation in diverse conditions including low temperature, oil, high pressure water
- Protection structure: IP65, IP67, IP67G, IP69K
- Ambient temperature: -30 to 60℃ - Additional functions and configuration available with dedicated software (atLightCurtain)
Finger Detection
Hand Detection
Finger-Hand Detection
7-Segment Display
Long Range
(Long Mode)Various Protection Circuits
Dedicated Software
Protection Rating
Various Models Available for Diverse Applications
Finger detection (Ø14 mm), hand detection (Ø20 mm), hand-body detection (Ø30 mm) models available for application in diverse user environments.

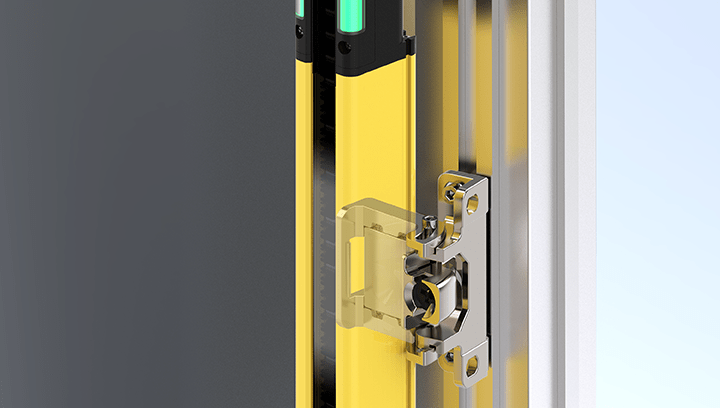

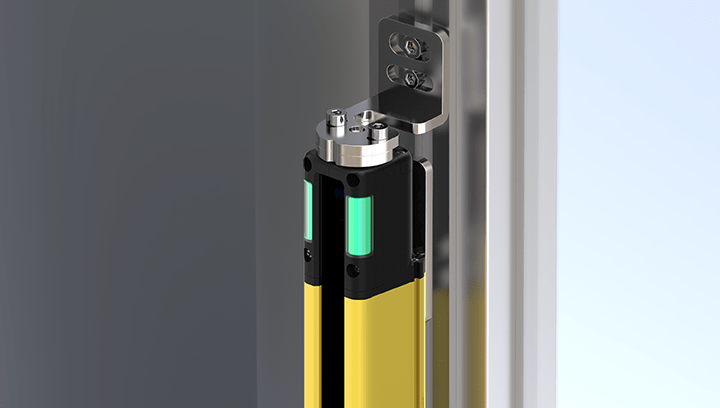

Easy Installation
Standard and adjustable brackets are available and can be installed on top, bottom, or middle of the units. One-touch method offer easy installation on middle of the units. The adjustable brackets can be adjusted by 15 degrees to right or left for easier installation.
High Visibility with Operation Display/Indicator
Users can check light received status during installation with the beam indicator on the top and bottom of the unit. The units feature 7-segment display and LED indicators for easy status readings.
Slim Size, High Durability and Environmental Resistance
The units feature high durability and resistance to impact. IP65, IP67, IP67G(JEM), IP69K protection rating allows the units to be installed in diverse conditions including low temperature, oil, and high pressure water.
-
Dedicated Software Provided (atLightCurtain)
atLightCurtain is a dedicated software to monitor functions of SFL series light curtains.
(Detailed settings may not be available on standard type SFL series)
