ARD-AI04 - DeviceNet Analog Remote I/O (Terminal Block Type)

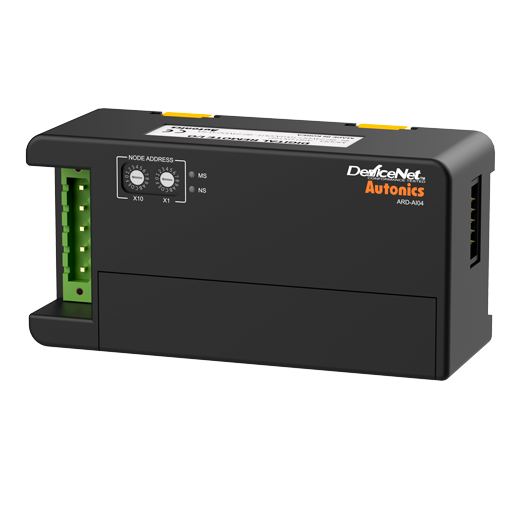

* Image may differARD-AI04
- Network : DeviceNet
- Type : Analog
- Number Of I/Os_Input : 4-CH(switchable DC voltage/current)
- I/O specification : Voltage: 0-10VDC, -10-10VDC, 0-5VDC, 1-5VDC, -5-5VDC (input impedance: max. 1MΩ)
Current: DC4-20mA, DC0-20mA (input impedance: 250Ω) - Module type : Basic unit
- Power supply : 24VDC
- Protection structure : IP20
Data sheet Print
| Network | DeviceNet |
|---|---|
| Type | Analog |
| Number Of I/Os_Input | 4-CH(switchable DC voltage/current) |
| I/O specification | Voltage: 0-10VDC, -10-10VDC, 0-5VDC, 1-5VDC, -5-5VDC (input impedance: max. 1MΩ) Current: DC4-20mA, DC0-20mA (input impedance: 250Ω) |
| Module type | Basic unit |
| Power supply | 24VDC |
| Protection structure | IP20 |
| Material | Front case, Body Case: PC |
| Insulation type | I/O and inner circuit: non-insulated, DeviceNet and inner circuit: insulated, Power and DeviceNet: insulated |
| Environment_Ambient temperature | -10 to 50℃, storage: -25 to 75℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 210g (approx. 145g) |
※The weight includes packaging. The weight in parentheses is for unit only.
※Environment resistance is rated at no freezing or condensation.
