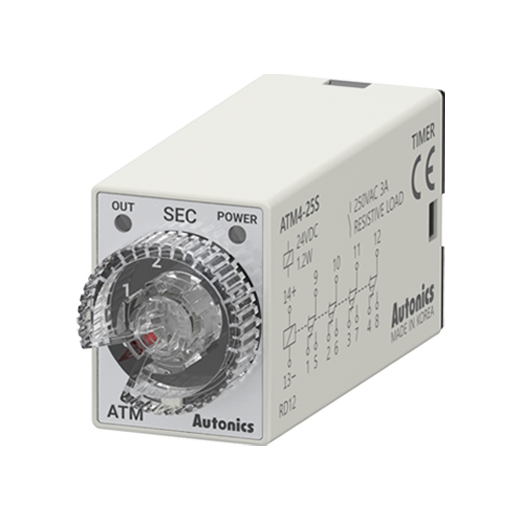

ATM4-25S - Miniature Analog Timers

Data sheet Print

Data sheet

Operation method	Time setting
Output Operation	POWER ON DELAY
Time operation	POWER ON START
Terminal	14-pin plug
Power supply	24VDC
Setting range	0.5 to 5 sec
Control output	SPDT (1c): 4
Environment_Ambient temperature	-10 to 50℃, storage: -25 to 65℃
Environment_Ambient humidity	35 to 85%RH
Weight	Approx. 48g (approx. 42g)

※Refer to time specifications for control time setting range by model.
※The weight includes packaging. The weight in parenthesis is for unit only.
※The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
※Sold separately: My socket
