ENC-1-2-V-24-C - Wheel Type Incremental Rotary Encoders

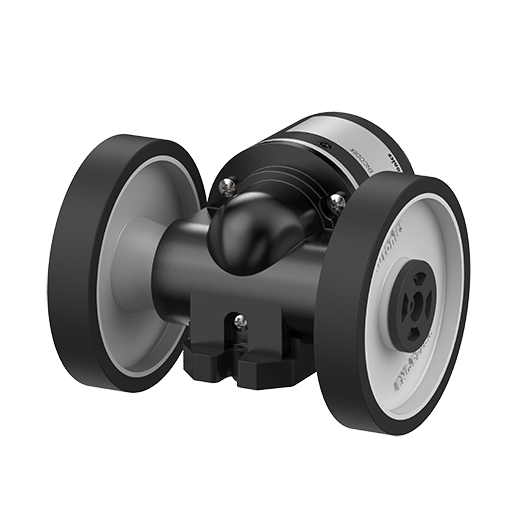

* Image may differENC-1-2-V-24-C
- Max. response frequency : 180kHz
- Max. allowable revolution : 5000rpm
- Output phase : A, B
- Wheel diameter : 250mm
- Gear ratio : 4:1
- Number of pulses : 100
- Control output : Voltage
- Power supply : 12-24VDC
±5%(ripple P-P: max. 5%) - Connection type : Axial cable connector type
- Protection structure : IP50
Data sheet Print
| Max. response frequency | 180kHz |
|---|---|
| Max. allowable revolution | 5000rpm |
| Output phase | A, B |
| Wheel diameter | 250mm |
| Gear ratio | 4:1 |
| Number of pulses | 100 |
| Min. measurement unit | 1cm |
| Control output | Voltage |
| Power supply | 12-24VDC ±5%(ripple P-P: max. 5%) |
| Connection type | Axial cable connector type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Weight | Approx. 494g |
※Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
