PA-12 - 8-Pin Plug Type Sensor Controllers

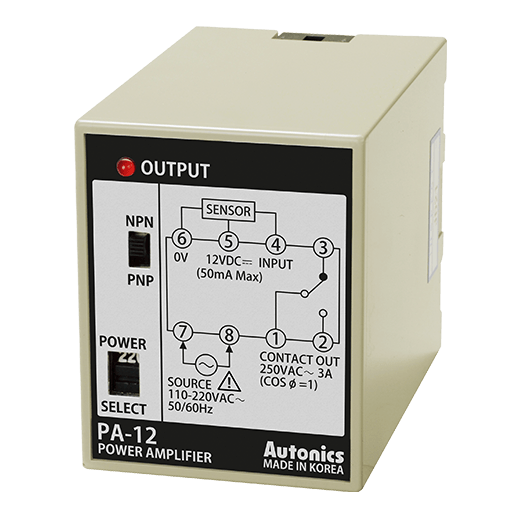

* Image may differPA-12
- Input logic : NPN open collector & NPN universal/PNP open collector & PNP universal(set by switch)
- Number Of Connected Sensors : 1 unit
- Power for external sensor : 12VDC
(approx. 50mA) - Power supply : 110/220VAC~50/60Hz(set by switch)
- Power consumption : Max. 4VA
- Control output : Relay SPDT(1c) 1개
Data sheet Print
| Input logic | NPN open collector & NPN universal/PNP open collector & PNP universal(set by switch) |
|---|---|
| Number Of Connected Sensors | 1 unit |
| Power for external sensor | 12VDC (approx. 50mA) |
| Power supply | 110/220VAC~50/60Hz(set by switch) |
| Power consumption | Max. 4VA |
| Control output | Relay SPDT(1c) 1개 |
| Ambient temperature | 10~50℃ |
| Power for external sensor | 12VDC ±10% 50mA |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 269g |
※Environment resistance is rated at no freezing or condensation.
※The weight includes packaging. The weight in parenthesis is for unit only.
※Sold separately: 8-pin socket (PG-08, PS-08(N))
