PRCMT08-1.5DC - Cylindrical Inductive Proximity Sensors

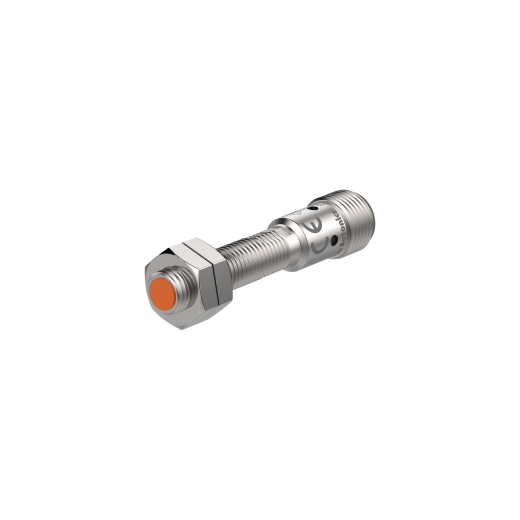

* Image may differ
PRCMT08-1.5DC
- Installation : Flush
- Sensing side diameter : Ø8mm
- Sensing distance : 1.5mm
- Standard sensing target : 8×8×1mm(iron)
- Response frequency : 1.5kHz
Data sheet Print
| Installation | Flush |
|---|---|
| Sensing side diameter | Ø8mm |
| Sensing distance | 1.5mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 8×8×1mm(iron) |
| Response frequency | 1.5kHz |
| Indicator | Operation indicator (red LED) |
| Unit weight (packaged weight) | ≈ 10 g (≈ 32 g) |
| Power supply | 12 - 24 VDC@(=)(ripple P-P: ≤ 10 %), operating voltage: 10 - 30 VDC@(=) |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | 2 to 100 mA |
| Residual voltage | Max. 3.5V |
| Protection circuit | Surge protection circuit, output short over current protection circuit, reverse polarity protection circuit |
| Insulation resistance | ≥ 50 MΩ (500 VDC@(=) megger) |
| Dielectric strength | Between the charging part and the case: 1,500 VAC~ 50 / 60Hz for 1 min |
| Vibration | 1.0 mm amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 2 hours |
| Shock | 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times |
| Environment_Ambient temperature | -25 to 70 ℃, storage: -30 to 80 ℃ (no freezing or condensation) |
| Environment_Ambient humidity | 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) |
| Protection structure | IP67(IEC standard) |
| Connection | Connector models |
| Connector type | M12 Connector |
| Material | Case/Nut: nickel plated brass (DIA. of sensing side Ø 8 mm connector type case: SUS303), washer: nickel plated iron, sensing side: PBT |
※The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance. ※Check the condition of connected device.
