PT8-4DN5-10 - Sensor Distribution Boxes (M12 5-Pin Connector Type)

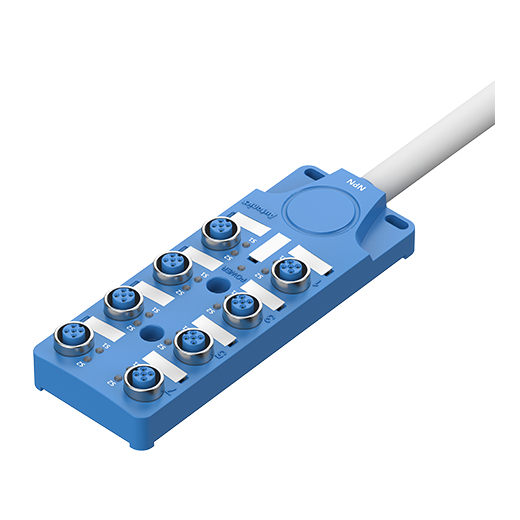

* Image may differPT8-4DN5-10
- Number of ports : 8-port
- Output : 2-Signal(DC 4-Wire type)
- Output logic : NPN
- Material : Case: PBT (G15%), Name plate: PC, General cable (black): Polyvinyl chloride (PVC)
- Unit weight (packaged weight) : ≈ 1260 g (≈ 1460 g)
Data sheet Print
| Number of ports | 8-port |
|---|---|
| Output | 2-Signal(DC 4-Wire type) |
| Output logic | NPN |
| Material | Case: PBT (G15%), Name plate: PC, General cable (black): Polyvinyl chloride (PVC) |
| Unit weight (packaged weight) | ≈ 1260 g (≈ 1460 g) |
| Power supply | 12-24VDC  |
| Rated current | 2A(per signal), 4A(per port), 10A(total) |
| Leakage current | Max. 0.5mA |
| Current consumption | ≤ 5 mA |
| Connection life cycle | Min. 200 operations |
| Environment_Ambient temperature | -25 to 75, storage: -30 to 80 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 95% RH |
| Protection structure | With connector / waterproof cover: IP67 (IEC standard), With protection cover: IP52 (IEC standard) |
| Cable length | 10m |
※Connect the sensor to the proper output type.
※This is not applicable when connectors and protection/waterproof covers are not mounted.
※The cable type weights are based on 5m cable.
