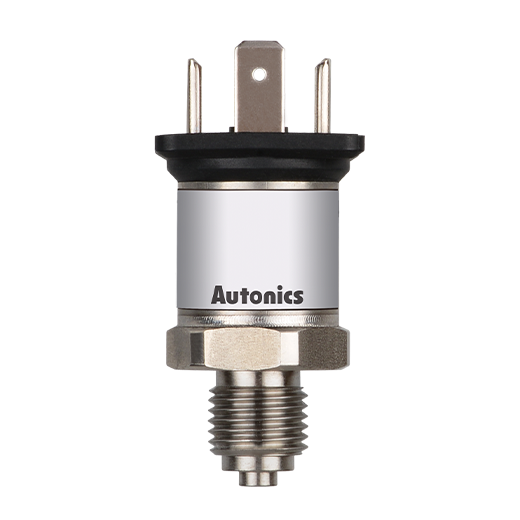

TPS30-G26AG4-00 - Stainless Steel Pressure Transmitters

Data sheet Print

Data sheet

Measured materials	Liquid, gas, oil (lnappropriate to corrosion environment for stainless steel 316L)
Power supply	11-36VDC (ripple P-P: max. 10%)
Accuracy	Max. ±0.5% F.S. (including linearity, hysteresis, reproducibility)
Linearity	Max. ±0.2% F.S.
Hysteresis	Max. ±0.2% F.S.
Environment_Ambient temperature	-40 to 85℃, storage: -40 to 125℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Environment_Fluid temperature	-40 to 125℃
Protection structure	IP65(IEC standard)
Material	Stainless steel 316L (head part of head type: aluminium diecasting), connector: Polybutylene terephthalate G30, water-proof rubber: silicon
Measurement pressure	Gauge pressure
Connection type	DIN43650-A connector type
Pressure range	0 to 1MPa
Weight	approx. 130g (approx. 50g)
Output specification	Current output(DC4-20mA)
Pressure port	G1/4(PF)(EN837)

※The sensor is sealed structure. It is based on atmospheric pressure 101.3kPa (1.013bar).
※G1/4 is the standard pressure port. For the other pressure ranges, G3/8, R1/2 are standard pressure ports.
※The option ports are sold separately. In case of large amount ordering, contact the Autonics for manufacturing the requested pressure port.
※Option(connector cable): Only for M12 connector type.
※Write the desired pressure range and it is the default of user pressure range. (select "Z" at Pressure range)
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
